ROW Spec 2012 LED Aftermarket Rear Lights Lamp for Range Rover L322 Vogue 2012+ - PAIR

Pair of Rear 2012 spec LED Lights

to fit Range Rover L322

Suitable for 2002 -2009 (vehicle modification required)

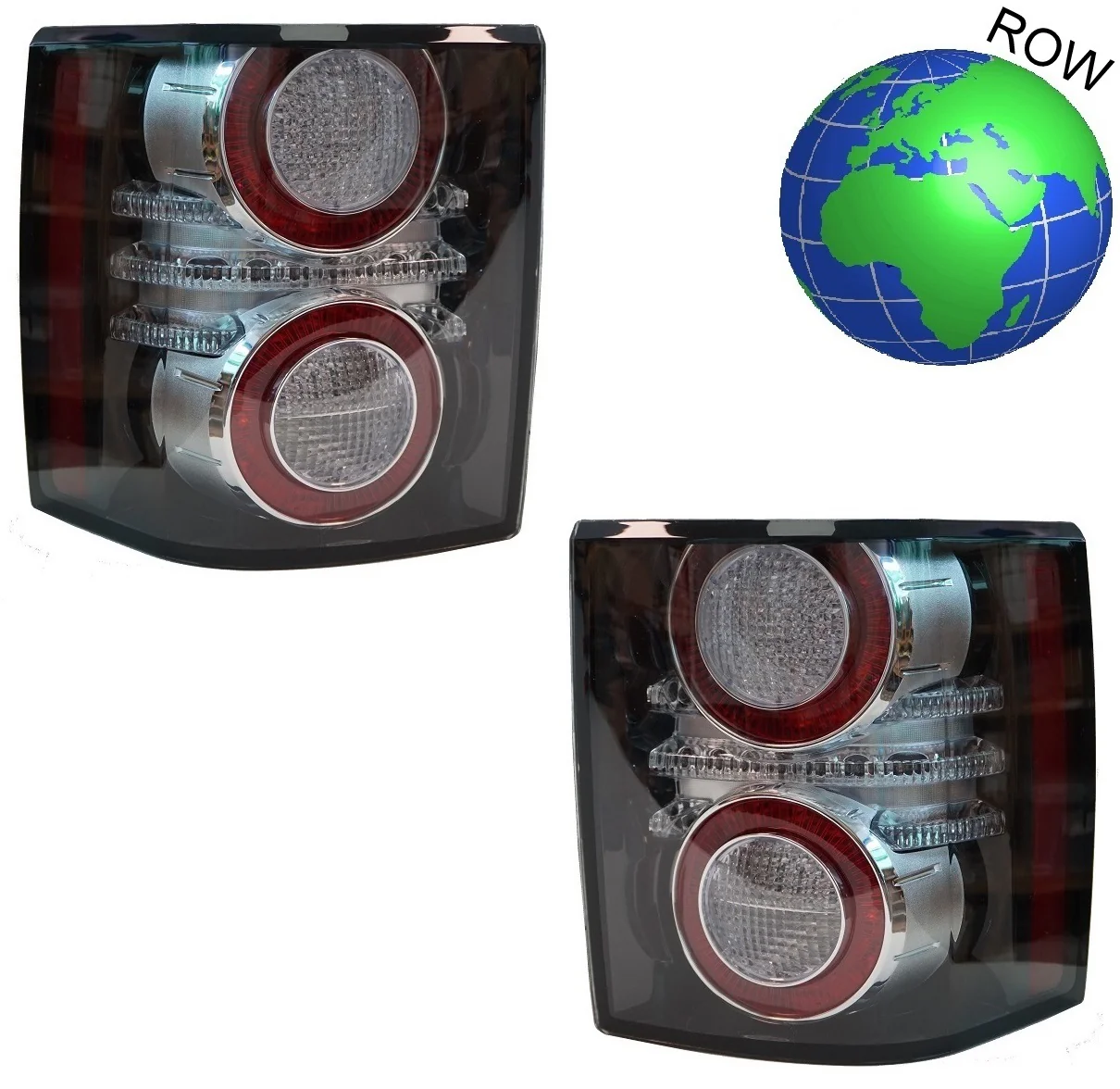

This listing is for a pair of aftermarket Range Rover L322 2012 spec rear light assemblies.

The Range Rover L322 was fitted with LED rear lights in 2010 as part of the facelift.

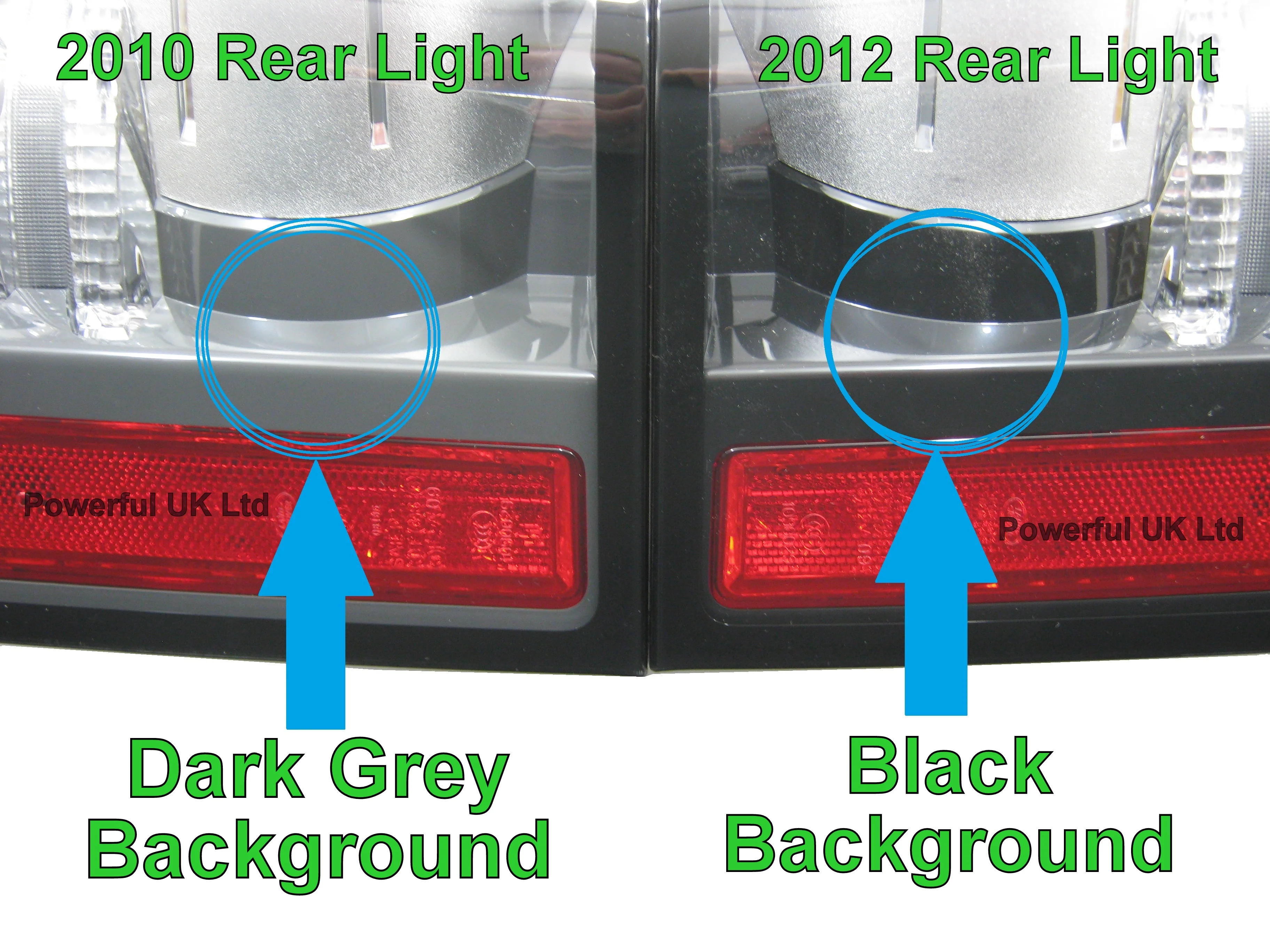

In 2012, the inner housing was changed from dark grey to black. This listing is for the 2012 spec with BLACK inner items.

These lights are what Land Rover term as ROW spec ( rest of the world ) rear lights as they don't have the extra bulb at the side of the light assembly which is needed for NAS spec (North American Specification) regulations.

Please see our other listings for the USA type ( our PN: RRL936 -AM-NAS-PAIR )

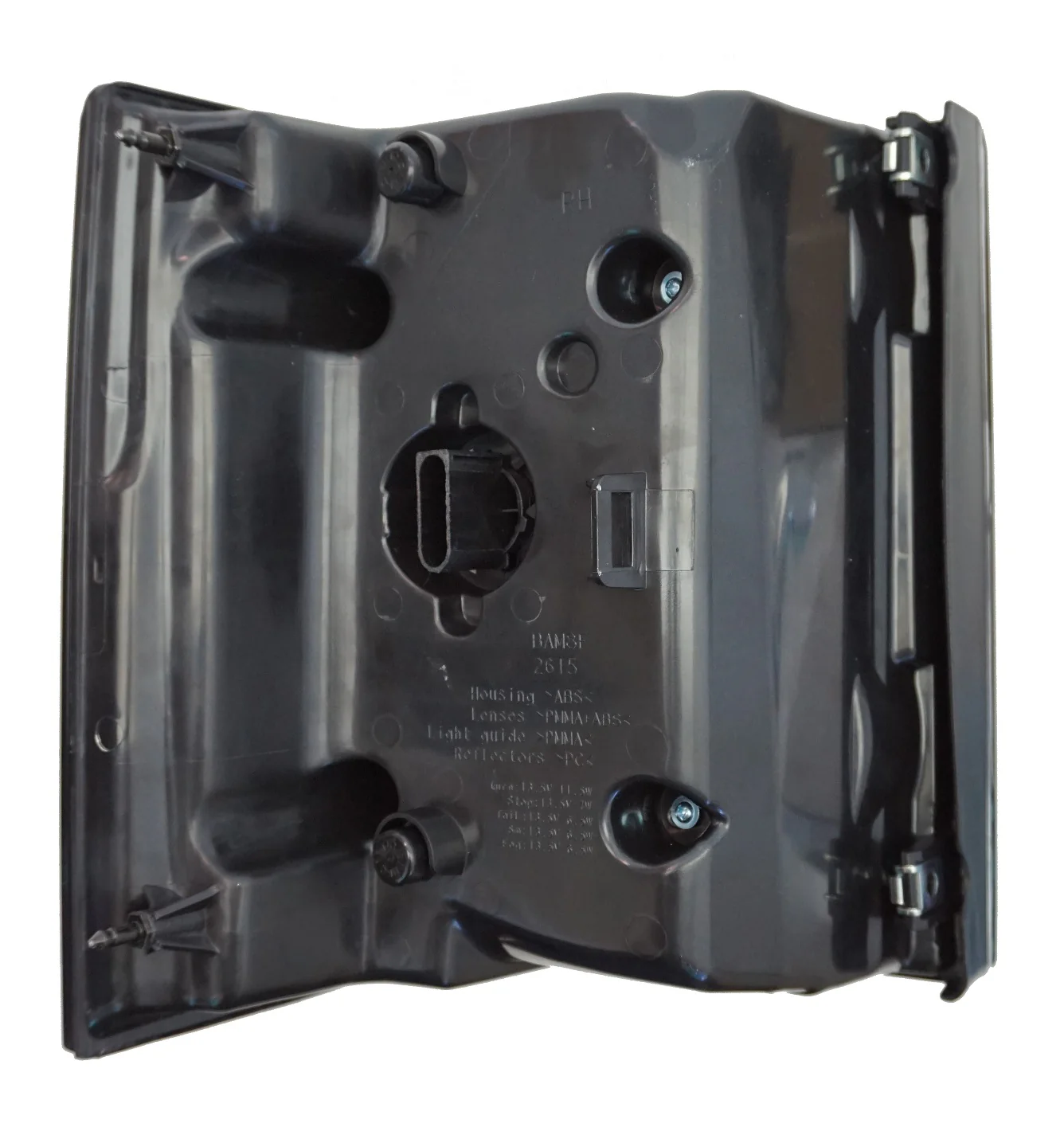

Each assembly comes complete with bulb / bulb holder/ connector / lens / reflector etc.

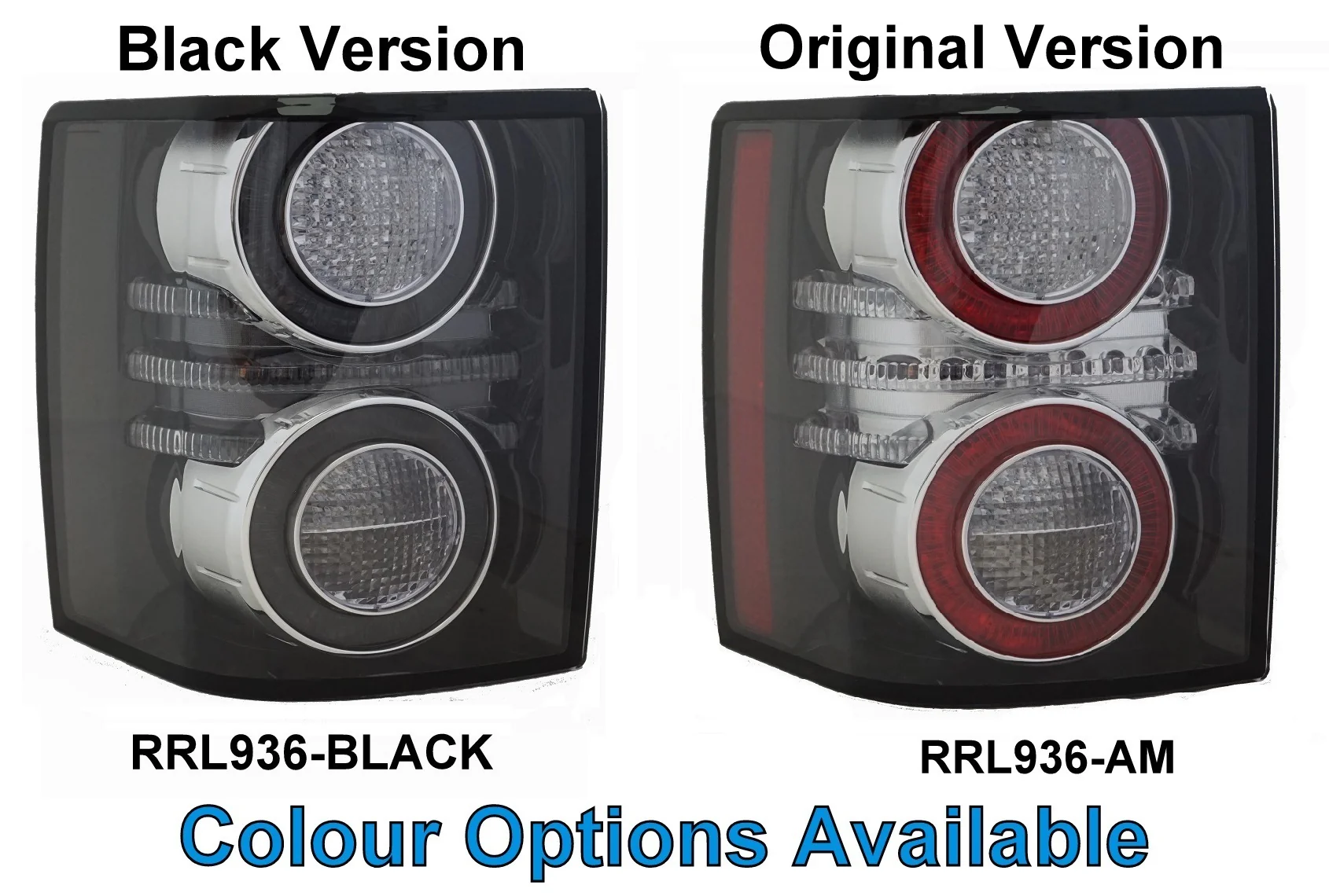

We also have custom "Black Edition" LED 2012 type rear lights available ( our PN: RRL936 -BLACK-PAIR )

Note: Some customers have experienced issues when fitting these lights to 2010 -12 vehicles, so we advise these are probably more suitable as an upgrade for the earlier vehicles (with some rework detailed below).

Note: You will need to make some modifications when these lights to a pre-2010 Range Rover L322:

1) The rear mounting points on the body need to be removed and replace with plastic inserts ( our PN: RRI681 )

2) The rear lights will do strange things ! You can fit a pair of our circuit boards that are designed to fix some of the light upgrade issues ( our PN: RWK350 )

These circuit boards are a solution in most cases if not you may need to seek help from an auto-electrician.

See link in "fitting details" below for more information.

See link in "fitting details" below for more information.

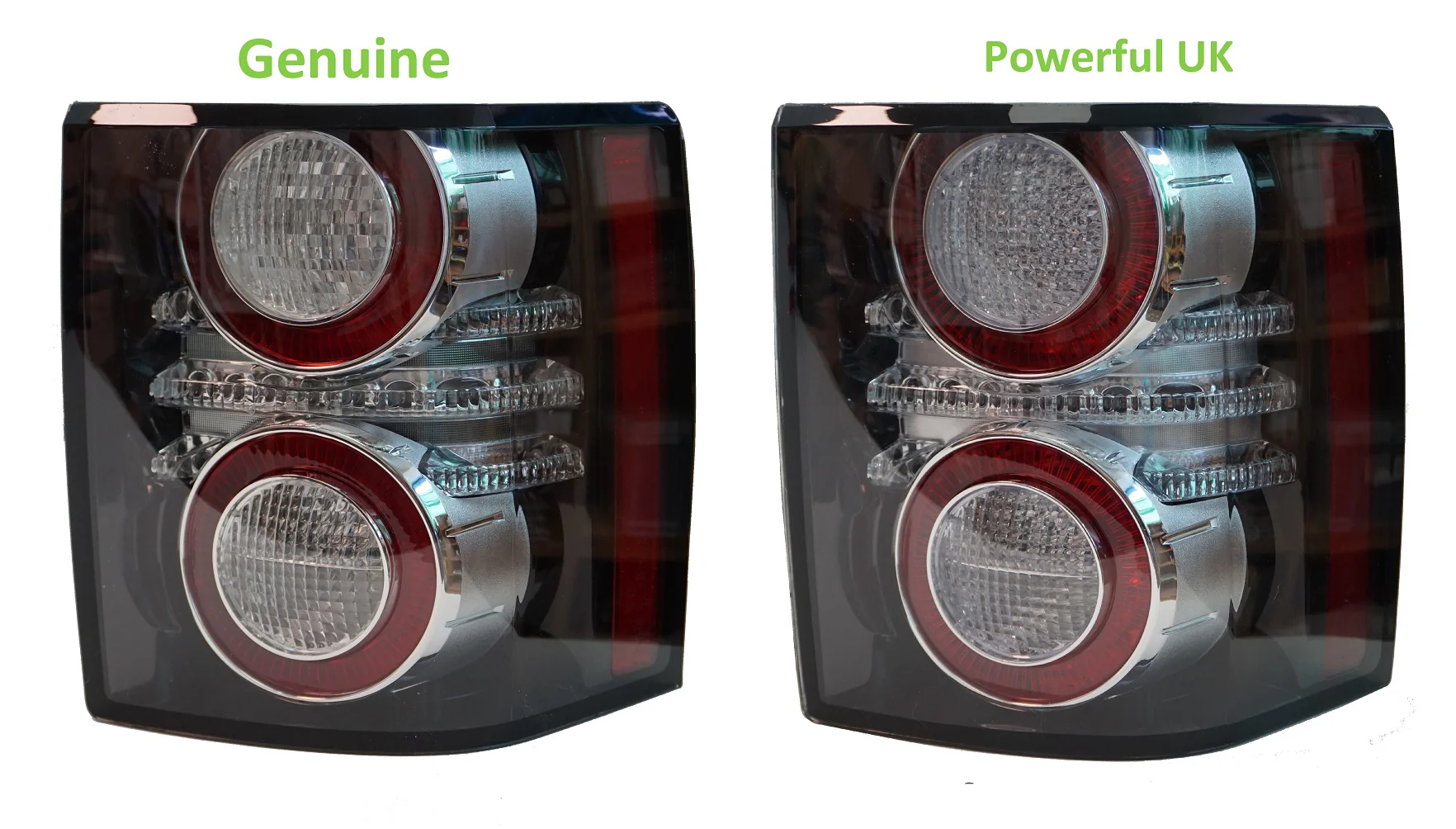

These are not genuine Land Rover parts and not E-Marked but will pass an MOT.

Fitting Details

These lamps are NOT PLUG AND PLAY. Modifications to bodywork and electrical work will need to be undertaken.

We strongly suggest that the electrical work/solution is checked before modifying bodywork

Remove the rear lights using the side bolts

Remove the electrical connector from the rear of the light.

See below for fitting video, Video shows how to remove earlier 2003 lights. .

>

If you would like to fit these 2010 rear lights to an earlier vehicle, please take a look at our youtube video channel

Which Vehicles will this fit ?

This item will fit all non USA Range Rover L322 models from 2002 - 2009 (but will require wiring modification )

These WILL NOT fit a Range Rover L322 2010-2012 model years as some customers have experienced issues with these including a dim glow on the lamps when turned off
